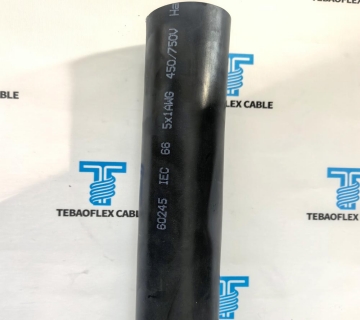

Type W Mining Cable is a heavy-duty portable power cable specifically engineered for demanding industrial environments where flexibility, durability, and reliable power transmission are essential. Originally developed for the North American mining industry, Type W cable has become one of the most widely used portable power cables for mining, construction, oil & gas, marine, utilities, and other heavy-duty applications.
Manufactured in accordance with UL 1650 and commonly approved by MSHA (Mine Safety and Health Administration), Type W cable is designed to withstand severe mechanical stress, harsh weather conditions, continuous flexing, and exposure to oils, moisture, chemicals, and abrasion. Its rugged construction makes it the preferred choice for powering mobile mining equipment, portable generators, pumps, crushers, conveyors, and other heavy-duty electrical equipment.
Whether operating in underground mines, surface mining sites, construction projects, or industrial facilities, Type W Mining Cable delivers dependable electrical performance while ensuring maximum safety and long service life.
Cable Construction
Type W Mining Cable is engineered using premium materials to achieve superior mechanical and electrical performance.
Conductor
- Flexible bare annealed copper
- Class K or Class M stranding
- High conductivity
- Excellent bending performance
Insulation
The insulation is commonly manufactured from EPDM rubber, offering:
- Excellent dielectric properties
- Heat resistance
- Moisture resistance
- Ozone resistance
- Long-term aging stability
Ground Conductors
Depending on the cable design, Type W cable may include one or two insulated grounding conductors to ensure safe equipment grounding in accordance with applicable electrical codes.
Fillers
Non-wicking fillers maintain cable roundness while enhancing flexibility and mechanical stability.
Tebao Flex Jacket
The heavy-duty jacket is typically made from CPE (Chlorinated Polyethylene) or high-performance neoprene compounds featuring:
- Excellent abrasion resistance
- Oil resistance
- Chemical resistance
- Flame retardancy
- UV resistance
- Weather resistance
- Tear resistance
Typical Applications
Type W Mining Cable is designed for portable power distribution in demanding industrial environments.
Underground Mining
It is widely used to power mobile mining equipment operating in underground coal mines, hard rock mines, and metal mining operations.
Typical equipment includes:
- Continuous miners
- Shuttle cars
- Roof bolters
- Underground pumps
- Ventilation systems
- Mobile conveyors
- Mining drills
The cable’s flexibility and abrasion resistance make it ideal for equipment that must be frequently moved throughout underground tunnels.
Surface Mining
Open-pit mining operations require rugged portable cables capable of withstanding harsh environmental conditions.
Common applications include:
- Electric shovels
- Mobile crushers
- Screening plants
- Stackers
- Conveyors
- Portable substations
- Dewatering pumps
Key Features
Excellent Flexibility
Type W Mining Cable is constructed with finely stranded annealed copper conductors, typically Class K or Class M, providing exceptional flexibility for applications requiring continuous movement. The flexible conductor design minimizes fatigue from repeated bending, twisting, and dragging, making the cable ideal for portable equipment and temporary power installations.
Superior Mechanical Strength
Mining environments expose cables to constant abrasion, impact, crushing, and rough handling. Type W cable features a thick, heavy-duty jacket that provides outstanding resistance against mechanical damage caused by rocks, steel structures, heavy equipment, and harsh working conditions.
Outstanding Abrasion Resistance
The heavy-duty chlorinated polyethylene (CPE) or neoprene outer jacket offers excellent abrasion resistance, significantly extending service life even when cables are dragged across rough mine floors or construction sites.
Oil and Chemical Resistance
Mining and industrial operations often involve exposure to hydraulic fluids, lubricants, diesel fuel, grease, and industrial chemicals. The specially formulated rubber insulation and protective jacket provide excellent resistance against oils and chemical contaminants, maintaining electrical integrity even in aggressive environments.
Moisture and Weather Resistance
Type W cable performs reliably in wet locations, muddy conditions, and outdoor environments. The cable remains resistant to water penetration, humidity, rain, and snow, making it suitable for both underground and surface mining operations.
UV and Ozone Resistance
For outdoor installations, the jacket is designed to resist ultraviolet radiation and ozone degradation, preventing premature aging and maintaining flexibility throughout its service life.
Flame Retardant Performance
Many Type W Mining Cables comply with MSHA flame-resistant requirements and other applicable flame-retardant standards, improving workplace safety in hazardous mining environments.
Wide Temperature Range
Designed for demanding industrial applications, Type W cable typically operates at temperatures ranging from -40°C to +90°C, maintaining flexibility even in extremely cold conditions.
